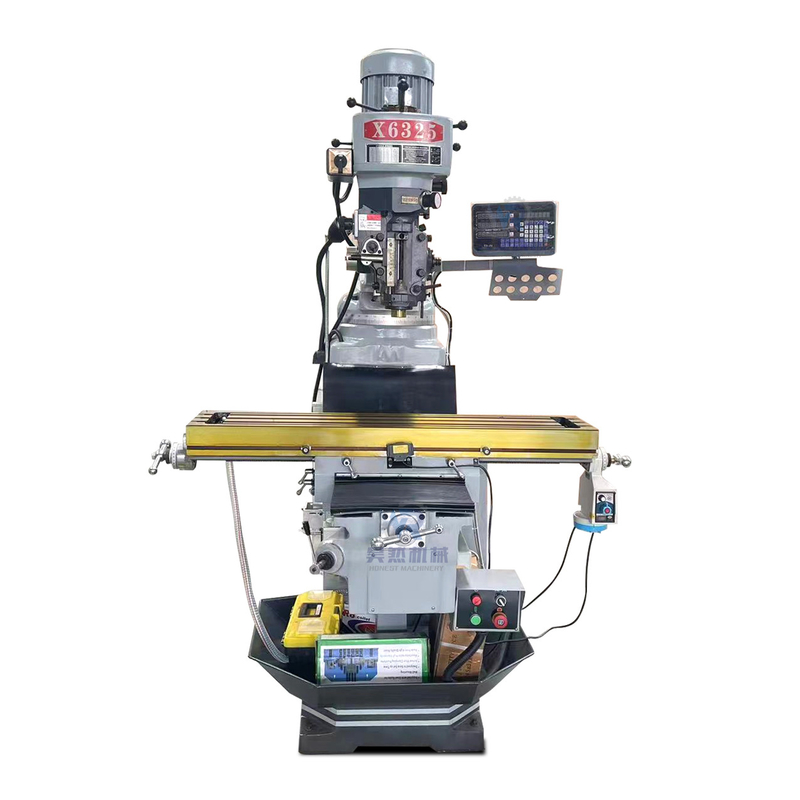

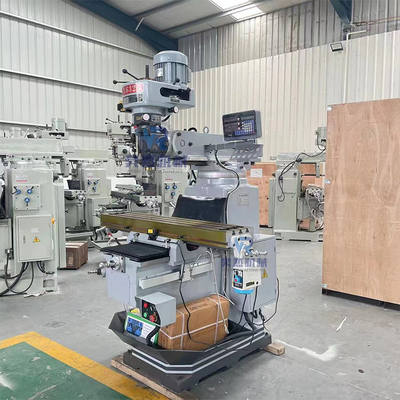

ODM X6325 Universal Milling Machine With Rotary Head

I'm Online Chat Now

ODM X6325 Universal Milling Machine With Rotary Head

ODM X6325 Universal Milling Machine With Rotary Head
ODM X6325 Universal Milling Machine With Rotary Head ODM X6325 Universal Milling Machine With Rotary Head

Large Image :  ODM X6325 Universal Milling Machine With Rotary Head

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: X6325
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: USD2000-4000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

ODM X6325 Universal Milling Machine With Rotary Head

Description
NAME: Rotary Head Milling Machine X6325 Universal Milling Machine Workbench Area: 1270*254
X Axis(mm): 780-850 Y Axis(mm): 380-420
Z Axis(mm): 350-380 Head Voltage: 3HP / 2.2KW
Ramp Voltage: 1.1Kw Net Weight(kg): 1200
Highlight:

X6325 Universal Milling Machine

,

ODM Universal Milling Machine

,

ODM rotary head milling machine



ODM X6325 Universal Milling Machine With Rotary Head



The main performance characteristics:
1. M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.

2. Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.

3. Three shaft screw fine grinding with advanced phosphor bronze nut, durable.

4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.

Product Description
ODM X6325 Universal Milling Machine With Rotary Head 0
ODM X6325 Universal Milling Machine With Rotary Head 1
Specifications
unit
X6325
Table size
mm
254x1270 / 254x1370
Longitudinal travel
mm
850 / 950
Transverse travel
mm
420 / 400
Vertical travel
mm
420
T slot no. and size
mm
3x16
Ram travel
mm
470
Distance from spindle nose to table surface
mm
0-405
Spindle taper

standard: R8

Optionl:ISO30/ISO40
Spindle travel
mm
127
Spindle speed
rpm
standard: (50HZ) 65-4500
optional: (variable)65-4500
Auto quill feed
mm/rev
0.04/0.08/0.15
Spindle motor
kw
2.25
Head swivel

90°
Head tilting

45°
Weight
kg
1550

Company information
ODM X6325 Universal Milling Machine With Rotary Head 2

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
ODM X6325 Universal Milling Machine With Rotary Head 3

Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Packaging&Shipping
ODM X6325 Universal Milling Machine With Rotary Head 4

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
ODM X6325 Universal Milling Machine With Rotary Head 5

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
ODM X6325 Universal Milling Machine With Rotary Head 6

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
