Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw

I'm Online Chat Now

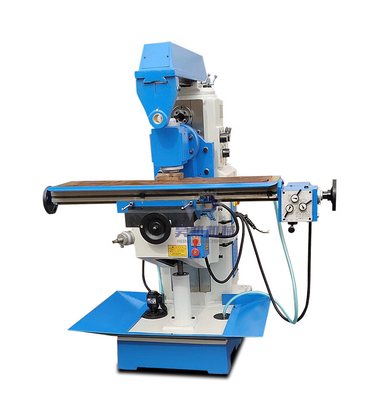

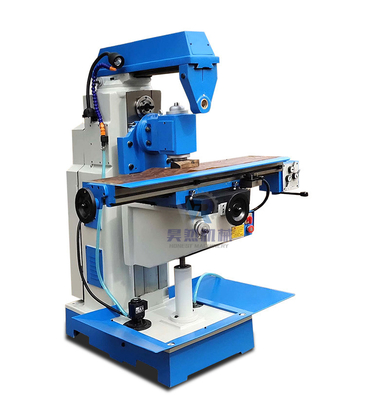

Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw

Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw

Large Image :  Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw

Product Details:
Place of Origin: china
Brand Name: HR
Certification: ceiso
Model Number: X6128
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd3500-6000
Packaging Details: wooden packing
Delivery Time: 30day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 40set/month

Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw

Description
NAME: Horizontal Metal Processing Milling Machine X6128 Table Size: 1200*280mm
Table Travel: 680/280/400mm T Slot(number-width-pitch): 5-14-50mm
Spindle Taper: IS040 7:24 Main Motor Power: 3kw
Weight: 1300kg Overall Dimension: 1725*1450*1750mm
Highlight:

3kw head milling machine

,

400mm head milling machine

,

400mm small vertical milling machine

Product Description
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 0
Specifications
Units
X6128
X6032
Table size
mm
1200×280
1500x320
Table travel
mm
680/280/400
800/300/400
T slot(number-width-pitch)
mm
5-14-50
3-16-70
Spindle taper

IS040 7:24
IS040 7:24
Spindle speed range
rpm
40-1300 (12 steps)
40-1300 (12 steps)
Distance between spindle axis and table surface
mm
0-400
0-400
Main motor power
kw
3
3
Weight
kg
1300
2050
Overall dimension
mm
1725×1450×1750
2070x1900x1850

The main performance characteristics:

1. Using rectangular guide machine is Rigid good,

2. Work table and guide rail through the ultra audio spark quenching.

3. Work bench X. Y all are gear drive automatic feed, Z to the electric lift.

Application:

1. Universal lifting platform milling machine is a kind of general metal cutting machine tool.

2. Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane,grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.


Company information
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 1

Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
sample
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 2

Application:
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.
Packaging&Shipping
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 3

Packaging Details:
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.
Certifications
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 4

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.
customer visiting
Light Duty Horizontal small Head Milling Machine For Metal Processing 400mm 3kw 5

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe
Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
