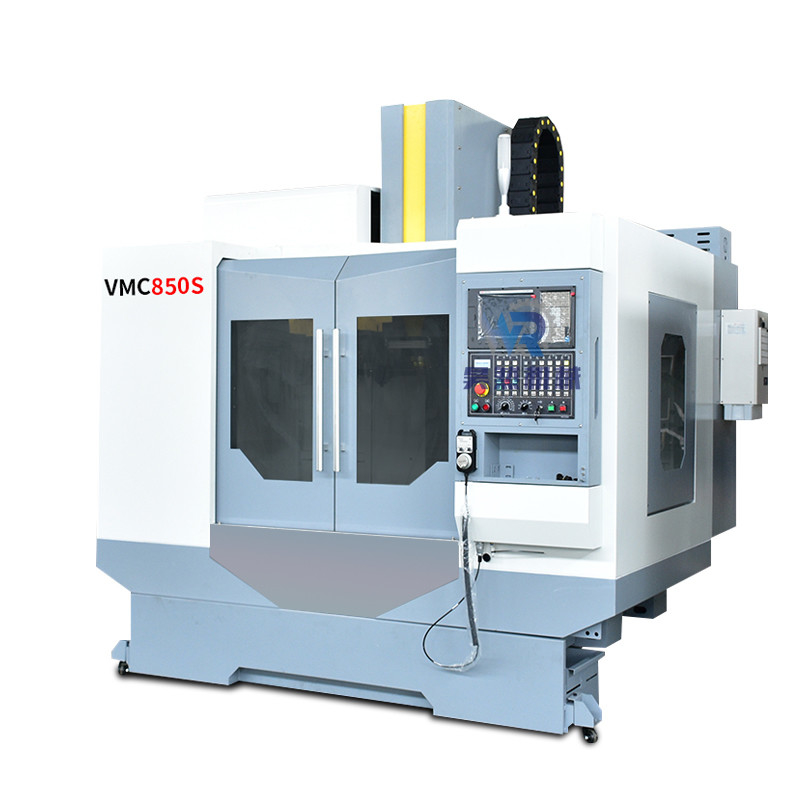

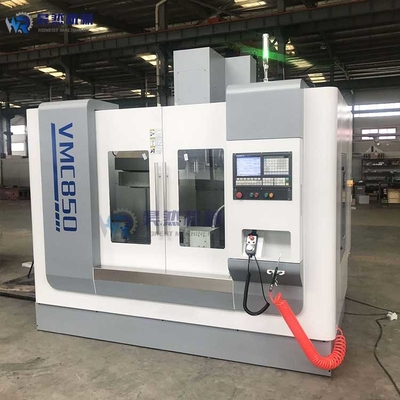

VMC850 800X500mm High Speed CNC Metal Vertical Machining Center Milling Machine
VMC850 CNC Milling Machine
This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Widely applicable, the production gospel of various industries
-------Automotive parts, bicycle parts
-------Electrical and electric tool parts
-------Optical accessories, railway accessories, petroleum machinery, printing machines
|
Item
|
VMC850
|
|
Size of worktable(length×width)mm
|
1000×500
|
|
T slot (mm)
|
5-18x100
|
|
Max loading weight on worktable
|
600kg
|
|
X-Axis travel(mm)
|
800
|
|
Y-Axis travel(mm)
|
500
|
|
Z-Axis travel(mm)
|
500
|
|
Distance between spindle nose and table
|
105-605mm
|
|
Distance between spindle
center and column(mm)
|
550
|
|
Spindle taper
|
BT40-150
|
|
Max. spindle speed( rpm)
|
8000/10000/12000
|
|
Spindle motor power(Kw)
|
7.5/11kw
|
|
Rapid feeding speed: X,Y,Z axis m/min
|
16/16/16 (24/24//24 liner guidway)
|
|
Fast cutting speed m /min
|
10m/min
|
|
Positional accuracy
|
±0.005 mm
|
|
Repeat positional accuracy
|
±0.003 mm
|
|
Auto Tool changer type
|
16 tools head type tool changer(optional 24 arm type auto tool changer)
|
|
Max. tool length
|
300mm
|
|
Max. Tool diameter
|
Φ80(adjacent tool)/φ150(not adjacent tool)
|
|
Max.tool weight
|
8kg
|
|
Tool changing time(tool-to-tool)
|
7sec
|
|
Air pressure
|
0.6 Mpa
|
|
Machine weight
|
5500KG
|
|
Overall sizse(mm)
|
2600*2300*2300
|
product details
Shandong HR machine Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Our Services
1. We supply 24 hours on-line service,you could contact with us by email ,phone ,wechat ,whatsapp,skype etc.
2. Received your phone or mail,we will Analyze the problem immediately.
3.Supply professional solution, after analyze the problem, we give you our best solution.
4. The warranty period of the whole machine is 1 year. Under normal use, if the machine parts are damaged during the warranty period, we will provide free accessories. Outside the warranty period, if the parts are damaged, we only charge the cost price of the parts, and will never overcharge.
5. Provide lifetime free technical support, you can contact us at any time if you encounter difficulties in the process of use.
6. We provide overseas services, engineers can go to the customer's factory for debugging,installation, maintenance, and repair.(In case of non-epidemic situation).
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
FAQ
Q1: How to buy the right product for you ?
A1: You can pass on your requirements to me, and we will reply to you in time.
Q2: About our after-sales service ?
A2: One-year warranty for all kinds of products after sale service; If you find any defective parts in the first time, we will timely deal with the free new parts for you to replace the next order.
Q3: How can I choose the most suitable machines ?
A3: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model ,You can also send us the products drawing ,we will choose the most suitable machines for you .
Q4: What are the terms of payment ?
A4: We support a variety of payment methods, such as online bank transfer, prepaid card, carrier billing, domestic bank exchange,credit card, etc
Q5: How long is the machine warranty?
A5: warranty is one year.If you need to replace accessories or parts after the warranty period, we will provide them to you at the cost price.
