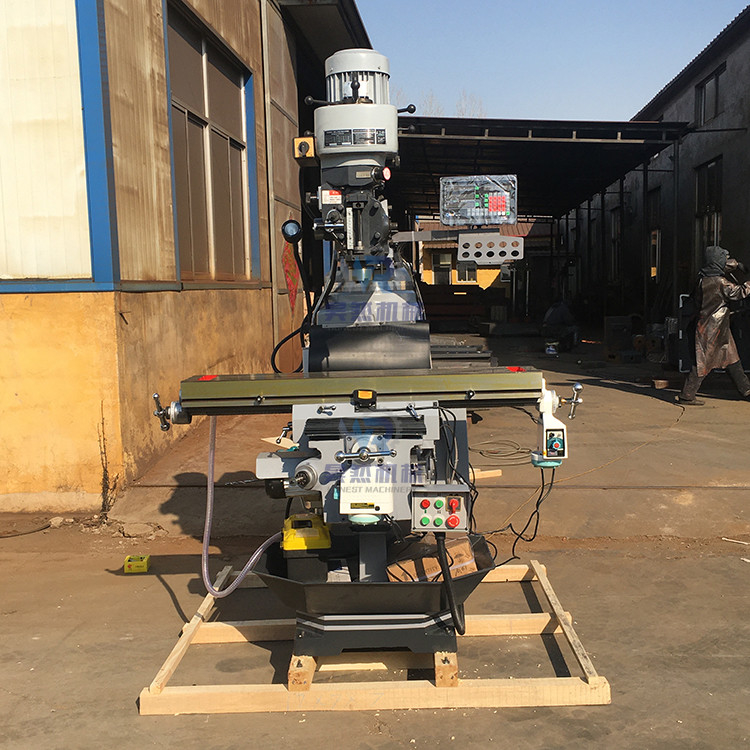

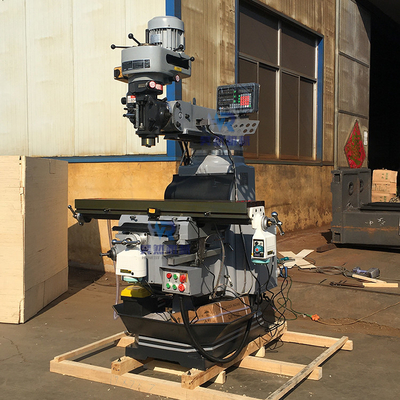

M4 Turret Metal Milling Machine Multifunctional Tool For Manufacturing

Large Image : M4 Turret Metal Milling Machine Multifunctional Tool For Manufacturing

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	M4

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd2900-4000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

M4 Turret Metal Milling Machine Multifunctional Tool For Manufacturing

Description

NAME:	M4 Vertical Turret Type Milling Machine For Metal	Workbench Area:	1270*254
X Axis（mm）:	780-850	Y Axis（mm）:	380-420
Z Axis（mm）:	350-380	T-slot Spacing（mm）:	65
Voltage（V）:	380	Net Weight（kg）:	1200
Highlight:	M4 Metal Milling Machine , Turret Metal Milling Machine , M4 turret milling machine

M4 Turret Metal Milling Machine Multifunctional Tool For Manufacturing

Product Description

Machine model		M4
Workbench area		1270*254	1370*254
travel	X axis(mm)	780-850	880-980
	Y axis(mm)	380-420	380-420
	Z axis(mm)	350-380	350-380
Spindle	Spindle taper	R8 NT40
	Spindle travel(mm)	127
	Spindle speed	16
	Spindle feed(mm)	0.076 / 0.003 0.038 / 0.0015 0.203 / 0.008
	Spindle low speed(r/min)	66,110,175,270,550,930,1460,2270
	Spindle high speed(r/min)	132,220,350,540,1100,1860,2920,4540
T slot	Number of slots X width(mm)	3X16
	T-slot spacing(mm)	65
motor	Voltage(V)	380
	frequency(HZ)	50
	head voltage	3HP / 2.2KW
	Ramp voltage	1.1Kw
maximum working weight(Kg)		350
Overall dimension(mm)		1800* 1780* 2350
net weight(kg)		1200

Company information

sample

Application:

Universal rotary head milling machine is a kind of medium and small general metal cutting machine tools, that can lie milling and can vertical milling.

Spindle taper hole of the machine can be directly or through the attachment installed all cylindrical milling cutter, disc cutter, molding cutter, end milling cutter tool, suitable for processing a variety of small parts of plane, inclined plane, grooves, holes, and other gear. Is a mechanical manufacturing, mold, equipment, instruments, automobiles, motorcycles and other industries of the ideal processing equipment.

Packaging＆Shipping

Packaging Details:

1. Outside package: Standard marine export plywood case.

2. Inner package: Stretchy film and plastic film for humidity. We can package according to your requests. Delivery Detail: Shipped in 20-30 working days after payment.

Certifications

All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. If you have any other specific requirements, please feel free to contact us. Our factory has obtained the import and export license issued by the Ministry of foreign trade, and passed the iso9001 quality management system certification and CE certification. In the quality layer by layer, we will wholeheartedly serve for the majority of customers.

customer visiting

We welcome customers to visit the factory, we will have customers to visit the factory and customers online purchase feedback, through feedback learning experience, continuous progress, better service for you.Shandong Honest is willing to unremitting pursuit and efforts, hand in hand with merchants to create a brilliant future

FAQ

1: How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe

Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight
