Vmc966 CNC Machining Center Manufacturers 4 Axis VMC CNC Milling Machine

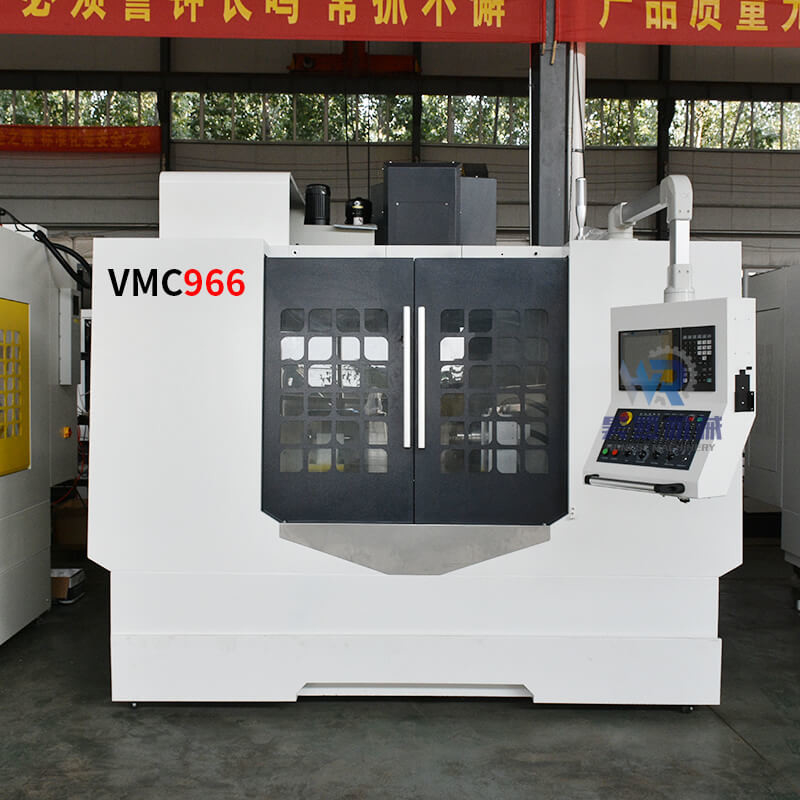

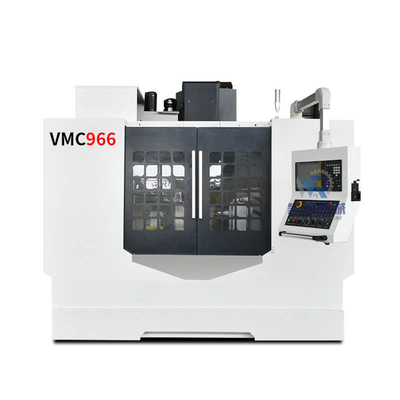

Large Image : Vmc966 CNC Machining Center Manufacturers 4 Axis VMC CNC Milling Machine

Product Details:

Place of Origin:	china
Brand Name:	HR
Certification:	ceiso
Model Number:	vmc966

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	usd 19000-40000
Packaging Details:	wooden packing
Delivery Time:	30day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	40set/month

Contact Now

Vmc966 CNC Machining Center Manufacturers 4 Axis VMC CNC Milling Machine

Description

Model:	VMC966	Table Size (mm):	1100*550
Max. Allowable Load (Kg):	600	X-axis Stroke (mm):	900
Y-axis Travel (mm):	600	Z-axis Travel (mm):	600
T-slot:	5-18-100	Machine Weight (Kg):	5600
Highlight:	Vmc966 cnc machining center manufacturers , VMC cnc machining center manufacturers , Vmc966 vmc cnc milling machine

Vmc966 CNC Machining Center Manufacturers 4 Axis VMC CNC Milling Machine

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product DescriptionMachining center 966 machine tool, vertical machining center, can be used in aerospace, automobile parts, machining and mold manufacturing fields, suitable for medium and small parts of high precision and high efficiency processing and drilling, milling, tapping, boring automatic processing

Machine samples:

Mainly used for a variety of complex plane, surface and shell parts processing, for example, all kinds of cams, molds,connecting rods, blades, propellers and boxes and other parts of the milling process, but also can drill, , Etc., for the processing of the box, cavity, mold and other parts, with the specifications of the CNC milling machine and machining center can meet the basic processing requirements.

Product Advantages

The advantages of Machining center 855

1. Tool Changer — A tool changer greatly increases a VMC's productivity by allowing for the automatic, computer-controlled selection of tools for a variety of tasks from rough cutting to fine hole boring.

2. Coolant System — To keep parts and cutters cool and lubricated, most VMCs employ some sort of recirculating coolant system; which is usually a mix of soluble oil and water but can be a variety of other liquids as well.

3. Chip/Screw Conveyor— To evacuate the chips from the work zone, a variety of chip conveyors and chip augers may be employed to increase productivity and reduce downtime from manually shoveling out waste chips.

4. Full Covers/Enclosures— These can be added to reduce the splash/splatter caused by milling operations and protect the operators and environment from the machining process.

5. Rotating Tables — Adding additional Axes to the machine can greatly increase its productivity by turning a simple three-axis machine into a four- or even five-axis system capable of machining complex components with varying surfaces (such as turbine blades).

6. Quick Loading Loaders — Another great addition to significantly increase productivity is the use of shuttle tables or other automatic part loading systems. These can decrease downtime and greatly increase the spindle “ON” time of most VMC systems.

Optional accessories

The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.

You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.

Machine detection
