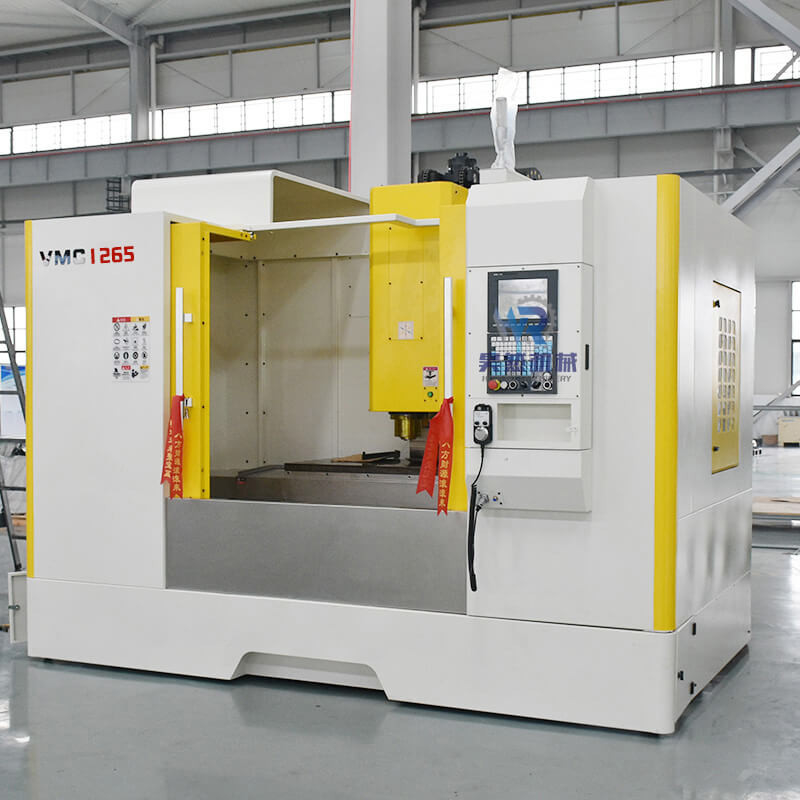

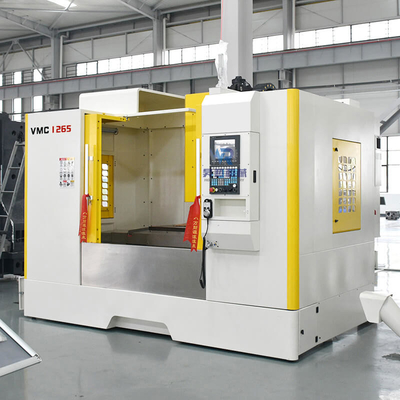

Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265

Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265

Large Image :  Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1265
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 26700$-32000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 200 per a month
Contact Now

Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265

Description
Name: Vmc1265 4axis Vertical Machine Center Number Of Axes: 4
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

Mini vertical cnc drilling machine

,

Vmc1265 vertical cnc drilling machine

,

4 Axis mini vertical machining center



Mini 4 Axis Vertical Cnc Drilling Machine Center Vmc1265

Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265 I
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-770
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
7000
8000
12000
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 0
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 1




Features:
1. Good rigidity: guide of a widened span for the machine body with high rigidity and great ability of shock absorption.
2. New structure: Spindle with floating tool stroke and ball screw pre-tensioned to ensure long service life and steady accuracy.
3. Large travel: larger travels in all three directions than those of the same specifications in the market.
4. Optimal configuration: imported major outsourcing parts and components including the CNC system, spindle unit, tools magazine,ball screw, bearings, etc.
Product Advantages

The advantages of Machining center 1265

High-rigidity/high-stability main structure
Use 3D-CAD and finite element analysis to delevlop high-rigidity machine tool structure
Resin bonded sand molding,twice aging,and special tank-type structure and optimized rib-reinforced lay-out,make the machine tool of good rigidity and hysteresis loss

High-speed/high precision spindle
High rigidity,high precision,big hole diameter spindle design,adopyt the precise slide angle ball bearing support
High rotary spindle provides high-speed cutting for customers,ensure the long-term stabilization of machine tool's precision
The spindle adopts synchronous belt drive of big torsion,no friction and less noise
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 2
Optional accessories
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 3



The machine can be equipped with many accessories to carry out different works. Mostly, the machine can be equipped with the 4th axis rotary table or dividing head, we can supply China brand and Taiwan brand, it can be equipped with tool setting probe. You can use tool setting probe to measure tool length,diameter etc. And you can also choose screw type chip conveyor or chain type conveyor.
You can choose all the optional accessories according to your demand. If you need any other accessories, we can talk in details, we will try our best to satisfy all your request.
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
Mini 4 axis Vertical Cnc Drilling Machine Center Vmc1265 4
