4 Axis KND Vertical Bed CNC VMC Machine Center VMC1160

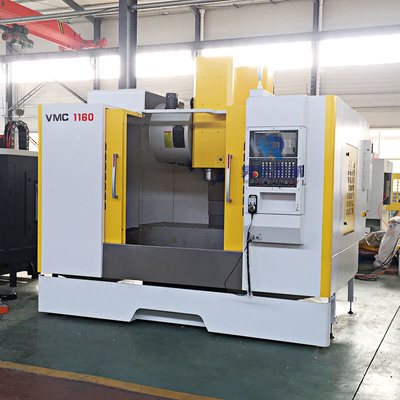

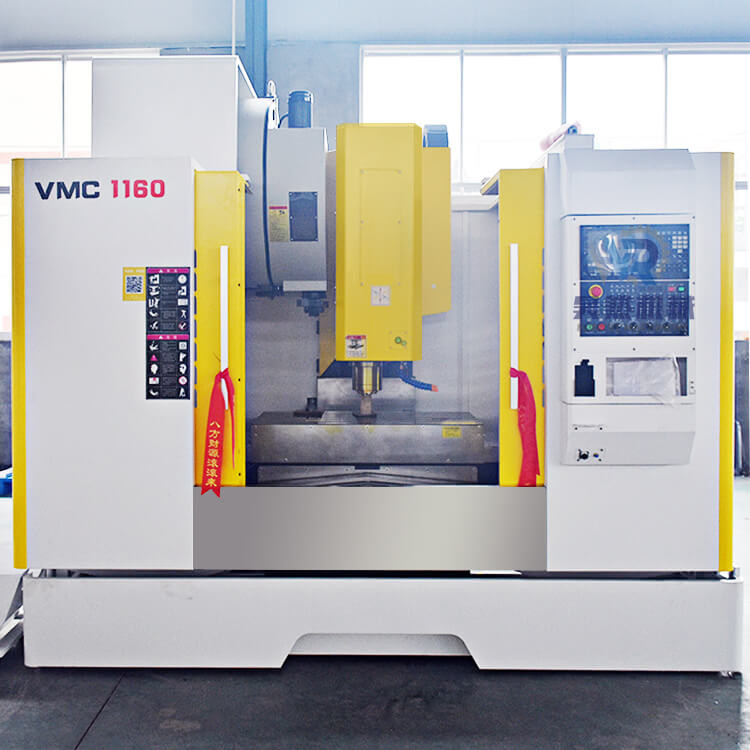

Large Image : 4 Axis KND Vertical Bed CNC VMC Machine Center VMC1160

Product Details:

Place of Origin:	China
Brand Name:	HR
Certification:	CE ISO
Model Number:	vmc 1160

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	26700$-32000$ per one set
Packaging Details:	wooden package
Delivery Time:	After 15-30 Days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability:	200 per a month

Contact Now

4 Axis KND Vertical Bed CNC VMC Machine Center VMC1160

Description

Name:	China VMC1160 4axis Knd Controller Vertical Machine Center	Number Of Axes:	4
Machining Capacity:	Medium Duty	Range Of Spindle Speed(r.p.m):	8000 - 12000
No. Of Spindles:	Single	Spindle Taper:	BT40
Positioning Accuracy (mm):	±0.005	Repeatability (X/Y/Z) (mm):	±0.002
Highlight:	4axis CNC VMC Machine , VMC1160 CNC VMC Machine , VMC1160

Product Paramenters

Model	VMC650	VMC840	VMC850	VMC855	VMC966 I
Table size (mm)	1000x400	1000x400	1000x500	1000x550	1100x550
Max. allowable load (Kg)	400	300	500	500	600
X-axis stroke (mm)	650	800	800	800	900
Y-axis travel (mm)	400	400	500	550	600
Z-axis travel (mm)	550	550	500	550	600
T-slot	3-18-120	3-18-140	5-18-108	5-18-90	5-18-100
spindle center to Z-axis guide surface (mm)	485	445	552	590	663
spindle end face to work table (mm)	100-650	100-650	110-610	120-670	100-700
Spindle taper hole	BT40-120	BT40-120	BT40-140	BT40-150	BT40-150
Spindle speed (r/min)	8000	8000	8000	8000	8000
X/Y/Z rapid movement (m/min)	48/48/48	30/30/18	48/48/48	48/48/48	48/48/48
Machine Weight (Kg)	3800	3200	5300	5500	5600

Model	VMC1050	VMC1160	VMC1165	VMC1265 I	VMC1370 I	VMC1580
Table size (mm)	1200x420	1200x600	1200x600	1200x600	1400x700	1700X800
Max. allowable load (Kg)	500	800	800	800	800	1500
X-axis stroke (mm)	1000	1100	1100	1200	1300	1500
Y-axis travel (mm)	500	600	650	650	700	800
Z-axis travel (mm)	550	600	650	650	750	700
T-slot	5-18-100	5-18x100	5-18-100	5-18-100	5-18-130	5-22-135
spindle center to Z-axis guide surface (mm)	)575	650	710	710	713	855
spindle end face to work table (mm)	100-650	120-720	120-720	120-770	120-870	160-860
Spindle taper hole	BT40-150	BT40-150	BT40-150	BT40-150	BT40-150	BT50-155
Spindle speed (r/min)	8000	8000	8000	8000	8000	6000
X/Y/Z rapid movement (m/min)	18/18/18	36/36/24	36/36/36	36/36/36	24/24/24	24/24/18
Machine Weight (Kg)	5500	6500	6800	7000	8000	12000

Product DescriptionStandard configuration: ▪ Beijing KNDsystem ▪ 24 disc magazines ▪ Taiwan Spindle ▪ Taiwan line rail
Choose configuration: ▪ FANUC Oi mf , Siemens, Taiwan New Generation, Wide Number, Mitsubishi CNC System
▪ Electrical cabinet air conditioner ▪ Double spiral chip conveyor, chain chip conveyor▪ Fourth axis,fifth axis ▪ Spindle oil cooler ▪ Spindle center outlet

Product Advantages

The advantages of Machining center

The main large parts of the machine: the base, work table, column, bed saddle and headstock are made of high-quality resin sand, high-strength high-quality cast iron,complete heat treatment process to eliminate residual stress, and enough reinforcing ribsto ensure the whole The machine has sufficient strength, rigidity and high stability; Adopting Taiwan original heavy-duty linear guide rail, it has strong rigidity and good dynamic precision; The three-axis transmission adopts Taiwan-made grinding double nut ball screw, which has compact structure, stable movement and high precision; The highly rigid Taiwanese spindle is lubricated with grease to provide constant andreliable lubrication of the spindle bearings; The base adopts a large water tray structure for casting, which has good waterproofperformance

Machine detection

Application Example

The machining center can complete a variety of processes at one time, and the processing efficiency is unmatched by manual operations. Before processing, use computer to design graphics, simulate and test whether the processed workpiece meets the requirements, and adjust the test piece in time, which greatly improves the fault tolerance rate and reduces the error rate. It can be said that the machining center is the most suitable mechanical equipment for mold processing.

Packaging＆Shipping
