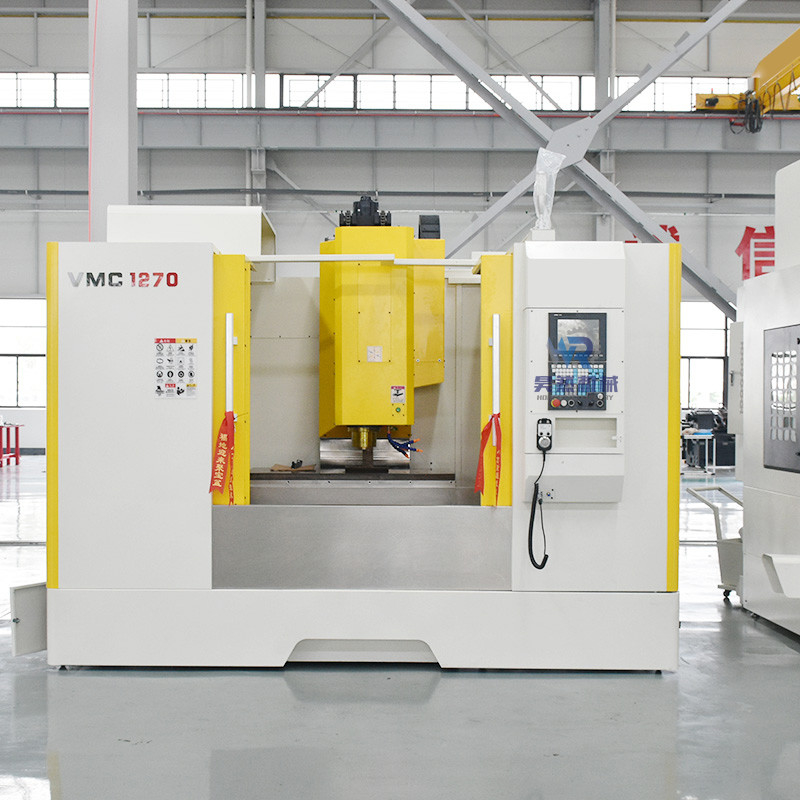

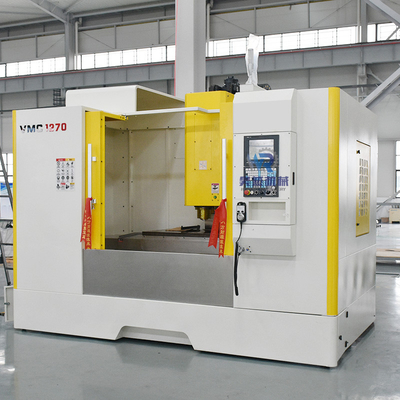

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270

Large Image :  3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270

Product Details:
Place of Origin: China
Brand Name: HR
Certification: CE ISO
Model Number: vmc 1270
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 34300$-35000$ per one set
Packaging Details: wooden package
Delivery Time: After 15-30 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Trade Assurance
Supply Ability: 60 per a month
Contact Now

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270

Description
Type: Vertical Number Of Axes: 3
Machining Capacity: Medium Duty Range Of Spindle Speed(r.p.m): 8000 - 12000
No. Of Spindles: Single Spindle Taper: BT40
Positioning Accuracy (mm): ±0.005 Repeatability (X/Y/Z) (mm): ±0.002
Highlight:

VMC cnc machine distributors

,

VMC1270 cnc machine distributors

,

3 Axis vmc cnc milling machine

4 axis cnc milling machine manufacturer VMC1270 cnc vertical machining center


Product Paramenters
Model
VMC650
VMC840
VMC850
VMC855
VMC966 I
Table size (mm)
1000x400
1000x400
1000x500
1000x550
1100x550
Max. allowable load (Kg)
400
300
500
500
600
X-axis stroke (mm)
650
800
800
800
900
Y-axis travel (mm)
400
400
500
550
600
Z-axis travel (mm)
550
550
500
550
600
T-slot
3-18-120
3-18-140
5-18-108
5-18-90
5-18-100
spindle center to Z-axis guide surface (mm)
485
445
552
590
663
spindle end face to work table (mm)
100-650
100-650
110-610
120-670
100-700
Spindle taper hole
BT40-120
BT40-120
BT40-140
BT40-150
BT40-150
Spindle speed (r/min)
8000
8000
8000
8000
8000
X/Y/Z rapid movement (m/min)
48/48/48
30/30/18
48/48/48
48/48/48
48/48/48
Machine Weight (Kg)
3800
3200
5300
5500
5600
Model
VMC1050
VMC1160
VMC1165
VMC1265
VMC1370 I
VMC1580
Table size (mm)
1200x420
1200x600
1200x600
1200x600
1400x700
1700X800
Max. allowable load (Kg)
500
800
800
800
800
1500
X-axis stroke (mm)
1000
1100
1100
1200
1300
1500
Y-axis travel (mm)
500
600
650
650
700
800
Z-axis travel (mm)
550
600
650
650
750
700
T-slot
5-18-100
5-18x100
5-18-100
5-18-100
5-18-130
5-22-135
spindle center to Z-axis guide surface (mm)
)575
650
710
710
713
855
spindle end face to work table (mm)
100-650
120-720
120-720
120-720
120-870
160-860
Spindle taper hole
BT40-150
BT40-150
BT40-150
BT40-150
BT40-150
BT50-155
Spindle speed (r/min)
8000
8000
8000
8000
8000
6000
X/Y/Z rapid movement (m/min)
18/18/18
36/36/24
36/36/36
36/36/36
24/24/24
24/24/18
Machine Weight (Kg)
5500
6500
6800
6800
8000
12000

STANDARD CONFIGURATION:

1. KND2000MF3i Control System
2. Taiwan BT40-8000 spindle.
3. Taiwan 16 tools ATC
4. Taiwan HIWIN three axis linear guideway
5. Taiwan Hiwin ball screw.
6. Work Lamp.
7. Full Enclosure Machine Guard.




OPTIONAL CONFIGURATION:

1. Siemens Fanuc Syntec KND Mitusbishi GUNT.
2. 16T/ 24T arm type tool changer.
3. Chain type chip conveyor.
4. 4th axis and 5th axis.
5. Spindle oil cooler.
6. Coolant through spindle.
7. Renishaw probe for workpiece and tool.
8. 10000RPM/ 12000RPM spindle.

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 0





VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.
Product details

Vmc 1270 CNC milling machine is a enclosed vertical machining center with X, y and Z three-axis servo direct control. The three axes are divided into hard rail and (optional: rolling linear guide). Vmc 1270 CNC milling machine The guide rail has large load, wide span, high precision, compact and reasonable structure and overall dimensions. The main shaft is driven by servo motor through the same step belt. It can realize the one-time clamping of various complex parts such as discs, plates, shells, cams and molds, and can complete the processing of various processes such as drilling, milling, boring, expanding, reaming and rigid tapping. Vmc 855 CNC milling machine is suitable for the production of multi variety, medium and small batch products, and can meet the processing of complex and high-precision parts.

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 1
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 2
Application Example
VMC 1270 cnc milling machine vertical machining center The vertical machining center is mainly used to process parts with high precision, many processes and complex shapes such as plates, disc parts, shell parts, molds, etc. It can continuously complete milling, drilling, expanding, reaming, boring, Tapping, two-dimensional and three-dimensional curved surfaces, and precise machining of inclined planes, the processing is programmed, and the production cycle is shortened, so that users can obtain good economic benefits.

3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 3
It is widely used to produce the auto spare parts, medical treatment instrument and any kind of injection mould, blowing mould, die-casting mould, car LED mould, toy mould and precise mould and o on. Large steel molds are the first products requiring large cutting amount and fast processing speed. It is applicable to the processing of plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping die, bronzing die, high-frequency die, embossing wheel die, die-casting die and graphite electrode. It is the best choice for mold manufacturing industry and parts processing.
Packaging＆Shipping
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity. We can
package according to your requests. Delivery Detail: Shipped in 15-30 working days after payment.
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 4
Company information
Shandong Honest control machine tool Co., Ltd. is a production-oriented enterprise with import and export rights. The company is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine and sophisticated equipment. The enterprise has 100 employees at present, including more than 10 engineers and dozens of workers and technicians. The company has been insisting on staff training for many years, through changing staff concepts, implementing enterprise reform, introducing new management concepts and methods, using modern management level. The company has hundreds of sales outlets, more than one sales branch or office, 30 provinces, cities, autonomous regions. In Europe, South America, Asia, Hong Kong and other countries and regions have long-term cooperation dealers. In recent years, the company insists on changing the mode and adjusting the structure; Implement brand strategy and expand foreign market; Control the manufacturing level of company equipment. Formed by CNC lathe, CNC milling machine, vertical machining center, gantry machining center, CNC metal band sawing machine, drilling and milling machine series, milling machine series, turret milling machine series, more than ten categories, hundreds of varieties of production scale. It has achieved the expected goal of CNC product serialization and characteristic product individuation, and formed its own brand while meeting the personalized needs of users.
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 5
Certifications
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 6
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 7
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 8
Customer Photos
3 Axis CNC Machine Distributors VMC CNC Milling Machine VMC1270 9
